Universal wood fibre insulation for roofs and facades (as a support for plaster or rain screen behind cladding)

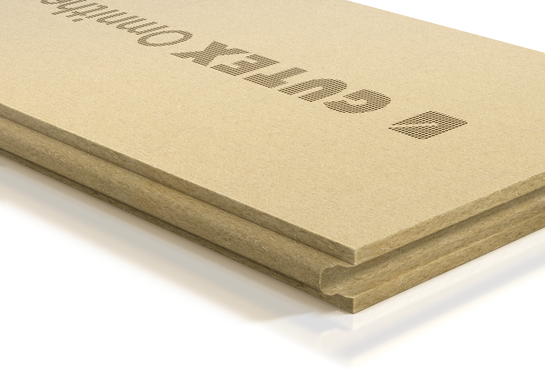

Gutex Omnitherm is a hydrophobic softwood fibre board, ideal for ventilated façades and as diffusion-open rafter insulation. With thicknesses of up to 200 mm, it provides effective insulation of roof and façade in a single operation, saving time and money. Its format of 1760 x 600 mm also contributes to rapid installation, particularly on roofs. In addition, ecological Omnitherm impresses with its excellent thermal insulation properties thanks to low thermal conductivity (λD 0.040 W/mK) and excellent heat-storage capacity.
- Excellent thermal insulation performance for year-round living comfort and low-rise buildings
- On facades, can be exposed to the elements for up to 4 months thanks to its water-repellent finish
- Time-saving installation thanks to high dimensional accuracy and large format
Nominal value of thermal conductivity λD
0,040 W/mK
Design value of thermal conductivity λB
0,042 W/mK
Product details
Natural, durable rafter insulation with Omnitherm
Omnitherm recyclable wood-fibre board is also suitable for use as roof insulation on rafters from a thickness of 60 mm upwards. After installation, the board must be fixed and immediately protected by an underlay. In combination with underlay sheets from Gutex partners such as Ampack, ProClima, Isocel or Würth, it is even possible to create low-slope roofs ≤10° to ≥5° diffusion-open pitch - for greater building physics safety and living comfort. Alternatively, Multiplex-top can be used as a rainproof underlay from a roof pitch of 15° upwards.
- Thermal insulation that can be fitted from both sides - for new build and renovation projects
- Allows you to create breathable roofs in combination with a suitable underlay sheet
- Recyclable, made in Germany
Ingredients
- Untreated fir and spruce wood
- 4% PUR resin
- 1.0% paraffin
Gutex Omnitherm: perfect for ventilated and rendered façades and as insulation on rafters
Storage and processing
- Store and use Omnitherm in a dry place.
Cutting
- Cutting is carried out using standard wood-cutting machines, and the statutory guidelines for handling wood dust must be observed.
Important notes

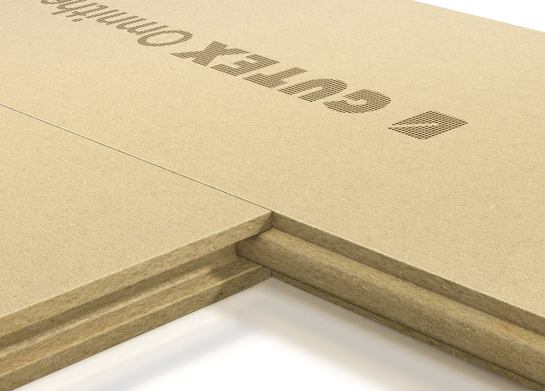

- Lay the panels perpendicular to the supporting structure, with a precise fit and watertight joints.
- Cross joints are not permitted.
- Damaged panels must not be installed.
- Increased humidity loads on the room side should be avoided.
- Dimensioning and positioning of fasteners in accordance with screw manufacturer's instructions.
Use in walls (on masonry, solid wood, ventilated and rendered facades)
Observe dimensions :
- Panel thickness 60-100 mm: max. centres 83.5 cm
- Panel thickness 120-160 mm: max. centres 93.5 mm
- Fix immediately with a rear ventilation batten.
- Joints should be at least 30 cm apart
- For fixing when used on a ventilated façade, see the technical data sheet (link).
- 4 months exposure to the elements.
For plastered facades
- Max. spacing 62.5 cm
- Observe GUTEX Thermowall installation guidelines
| Bulk density ρ | ~ 140 kg/m³ |
| Vapour diffusion (μ) | 4 |
| Nominal value of thermal conductivity λD | 0,040 W/mK |
| Design value of thermal conductivity λB | 0,042 W/mK |
| Compressive stress strength | ≥ 100 kPa |
| Short-term water absorption | ≤ 1 kg/m² |
| Airflow resistance | ≥ 100 kPa s/m² |
| Specific heat capacity | 2100 J/kgK |
| Fire behaviour Euroclass according to DIN EN 13501-1 | E |
| Product standard International | EN 13171 |
| Plate labelling | WF-EN 13171-T5-WS1,0-CS(10/Y)100-TR10-MU4-AFr100 |
| Tensile strength perpendicular to the board surface | ≥ 10 kPa |
