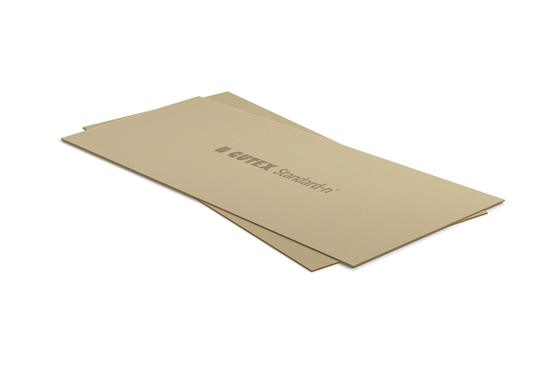

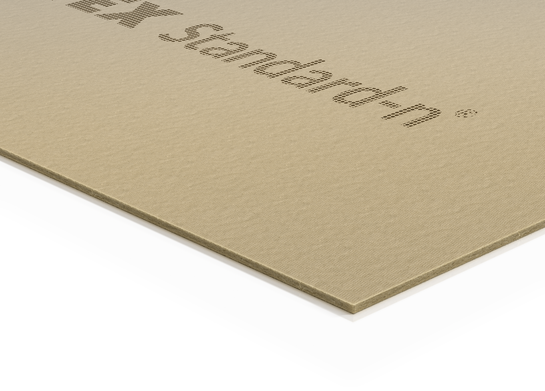

Insulating panel for a wide range of indoor and industrial applications
Gutex Standard-n is a versatile and durable base board for a wide range of interior applications: from thermal insulation at floor and ceiling level to levelling in floors. The insulation board made from compacted ecological wood fibres impresses with its high compressive strength and ease of processing - ideal for efficient, environmentally-friendly interior design. It is also used in industrial processing, for example in door inserts, partitions or display panels, and as a packaging material.
- Additional thermal insulation and improved soundproofing
- High pressure resistance for long-term stability
- Quick and easy installation thanks to precise dimensions
Nominal value of thermal conductivity λD
0,046 W/mK
Design value of thermal conductivity λB
0,048 W/mK
Product details
Insulation and level compensation - ecologically efficient
Standard-n ecological wood fibre insulation board is ideal for levelling out differences in floor heights, and creates a solid base for laying floors that are visually and technically flawless. Its pressure-resistant structure makes it a reliable cover for backfill, and its material properties improve thermal and acoustic insulation. It is also diffusion-open and moisture-regulating, making it ideal for insulation in cellars and dry ceilings. Standard-n also has many applications in industry, for example as a durable material for display panels and partitions, door inserts or packaging. The durable wood fibre insulation board is recyclable and made in Germany.
- Additional thermal insulation and improved soundproofing
- Pressure-resistant structure for reliable backfill coverage and level compensation for soil structures
- Open to diffusion and moisture-regulating - ideal for cellars and dry ceilings
Ingredients
- Untreated fir and spruce wood
- 1.5% paraffin
Gutex Standard-n insulation panel: versatile, easy to install

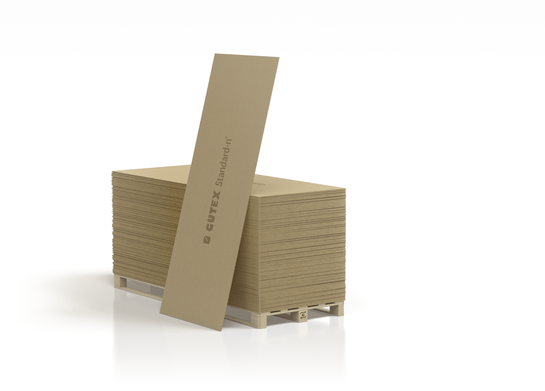

Storage
- Standard-n Store and handle dry
Cutting
- From 10 mm thickness upwards, using a hand-held circular saw; the legal requirements for handling wood dust must be complied with.
- Up to 10 mm thick with a sharp carpet knife.
Installation
- In the case of several layers, lay the flexible fibreboards with the joints staggered.
| Bulk density ρ | ~ 250 kg/m³ |
| Vapour diffusion (μ) | 5 |
| Nominal value of thermal conductivity λD | 0,046 W/mK |
| Design value of thermal conductivity λB | 0,048 W/mK |
| Compressive stress strength | ≥ 100 kPa |
| Short-term water absorption | ≤ 2 kg/m² |
| Airflow resistance | ≥ 100 kPa s/m² |
| Specific heat capacity | 2100 J/kgK |
| Fire behaviour Euroclass according to DIN EN 13501-1 | E |
| Plate labelling | WF-EN13171-T4-WS2,0-CS(10/Y)100-MU5-AF100 |
