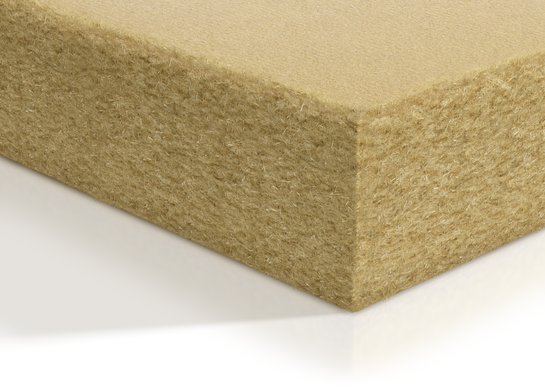

Semi-rigid wood-fibre board for rafter and compartment insulation
The semi-rigid wood-fibre panel features a unique fibre structure for exceptional stability and clamping force, and is easy to fit into the compartment, providing high-quality insulation that lasts longer than average.
- High clamping force and stability for permanently effective thermal insulation
- Low-dust insulating matting for pleasant, clean working conditions
- Fast, precise cutting, saving time and waste
Nominal value of thermal conductivity λD
0,036 W/mK
Design value of thermal conductivity λB
0,038 W/mK
Product details
Your home, naturally insulated: Gutex Thermoflex
Thermoflex ecological wood-fibre insulation is generally very easy to install: it releases less dust than comparable insulation batts, which benefits people and cleanliness on the building site. What's more, it can be cut quickly and accurately, saving time and avoiding falls. The homogeneous structure of this flexible wood-fibre insulation batts gives it a convincing appearance; its low raw density gives it a high insulating capacity. This is complemented by its exceptional thermal resistance, which, combined with its very high heat-storage capacity, ensures the best insulation results and a comfortable indoor climate throughout the house. With a wide choice of thicknesses and formats, Gutex Thermoflex is ideal for implementing the most diverse timber construction concepts.
One panel, many possibilities: roof, ceiling, inside wall, outside wall
Thermoflex insulation blanket is the environmentally-friendly wood fibre insulation for a wide range of applications: from rafter insulation in roofs to compartment insulation in the spaces between wooden studs in internal and external walls. It is also suitable for insulating ceilings and for use in partition walls and dry construction.
Ingredients
- Untreated fir and spruce wood
- 6% Ammonium salts
- approx. 5% textile binding fibres
Gutex Thermoflex semi-rigid wood fibre insulation board for rafter and compartment insulation
Storage
- Store and use insulation boards in a dry place, protected from moisture.
Cutting
- With an electric handsaw, a band saw, suitable saws for insulating materials, orGutex knife for insulating materialsthe legal provisions governing the handling of wood dust must be complied with.
Drilling
- With metal or stone drills at full speed.
- Hole saw available for holes in flush-mounted boxes or pipe penetrations.
Temperature resistance
- Can be exposed to temperatures of up to 100°C, even for prolonged periods; cannot be exposed to open flames.
- Ideally, encapsulate local heat sources such as recessed lamps, etc. with appropriate boxes.
Gutex Thermoflex between wooden studs and beams for insulating ceilings, external walls, partitions, etc.
Cutting
- With excess length and width according to the clamping table below. The excess clamping thickness is ≥ 1% of the internal width of the span.
Table of terminals :
ThickThermoflex | MaximaleSpan |
|---|---|
30 mm | 350 mm |
40 mm | 450 mm |
60 mm | 500 mm |
80 mm | 565 mm |
100 mm | 600 mm |
120 mm | 650 mm |
140 mm | 700 mm |
145 mm | 700 mm |
160 mm | 750 mm |
180 mm | 800 mm |
200 mm | 850 mm |
220 mm | 900 mm |
240 mm | 950 mm |
Note:Spans may vary depending on the construction, the nature of the rafters or ceiling beams and the pitch of the roof..
Treatment
- Thermal bridges are avoided by compressing the panel.

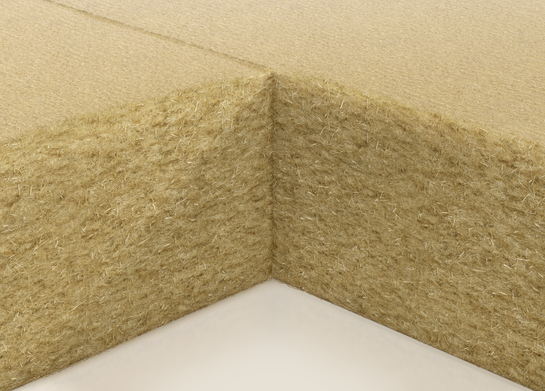

- Taking into account the extra height when cutting, it is also possible to clamp two pieces next to each other to minimise off-cuts.
- Secure roof and ceiling insulation blankets after three days at the latest to prevent them from falling.
Gutex Thermoflex between metal studs for insulating interior walls, etc.
Treatment
- First insulate the end fields with the CW profiles facing each other.
- Adjust the wood-fibre insulation, move the profiles into their final position and fix them, then insulate the remaining panels.
ThickMetal brackets | ThicknessThermoflex |
|---|---|
50 mm | 40 mm |
75 mm | 60 mm |
100 mm | 80 mm |
125 mm | 100 mm |
Note
Filling in around 80% of timber-framed internal walls improves sound insulation, because the air space remaining in the compartments reduces sound transmission and thus contributes to effective sound insulation.
| Bulk density ρ | ~ 50 kg/m³ |
| Vapour diffusion (μ) | 2 |
| Nominal value of thermal conductivity λD | 0,036 W/mK |
| Design value of thermal conductivity λB | 0,038 W/mK |
| Airflow resistance | ≥ 5 kPa s/m² |
| Specific heat capacity | 2100 J/kgK |
| Fire behaviour Euroclass according to DIN EN 13501-1 | E |
| Plate labelling | WF-EN 13171-T3-TR1 AFr5 |
| Tensile strength perpendicular to the board surface | ≥ 1 kPa |
