Impact sound insulation panel for floor structures

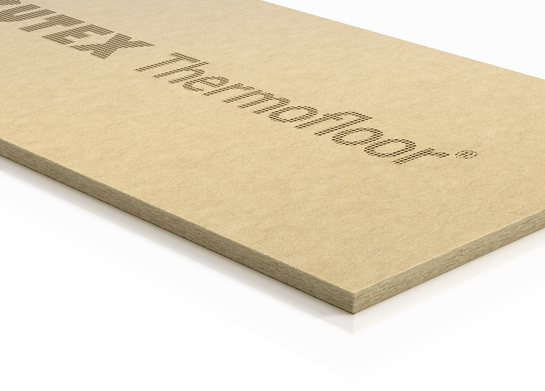

Gutex Thermofloor is the durable wood fibre sound insulation board for multi-purpose floor constructions with sound insulation requirements. With a load-bearing capacity of up to 5 kN/m² (excluding dry screed elements), it provides reliable insulation against airborne and impact noise and also offers thermal insulation - ideal under wet screed, mastic asphalt or chipboard or OSB installation panels.
Benefits
- Effective insulation against airborne and impact noise for a better quality of life
- High load-bearing capacity with up to 5 kN/m2 payload (excluding dry screed elements)
- Versatile use, also in combination with underfloor heating
Nominal value of thermal conductivity λD
0,040 W/mK
Design value of thermal conductivity λB
0,042 W/mK
Product details
Optimum preparation: Gutex Thermofloor as a substrate for wet screed, mastic asphalt or dry screed elements
Thermofloor ecological sound insulation reliably reduces noise pollution and provides high levels of insulation against airborne sound and impact noise - ideal for timber and concrete beam floors. It is highly resistant and ideally suited to robust floor structures with a load-bearing capacity of up to 5 kN/m² (excluding dry screed elements). Thanks to its dimensional accuracy, it is quick and easy to install.
Thermofloor ecological sound insulation provides reliable acoustic protection and effectively reduces noise pollution - ideal for wood beam and concrete ceilings. Its high dimensional accuracy makes installation quick and easy, while its high load-bearing capacity creates a basis for durable floor structures.
- Fast, easy installation thanks to high dimensional accuracy
- Durable and robust for strong floor structures
- Durable and recyclable, made in Germany
Ingredients
- Untreated fir and spruce wood
- For a panel thickness of 30 mm, 2.0% white glue for two-layer tape bonding

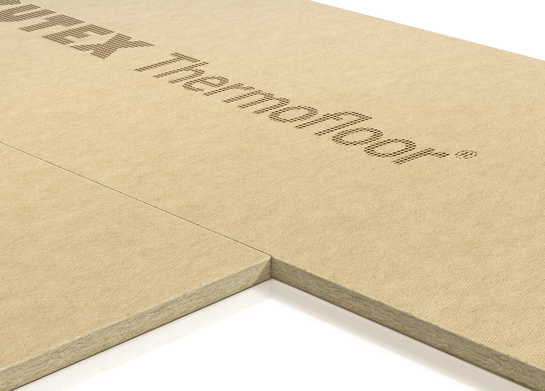

Thermofloor acoustic insulation panel: precise dimensions for easy installation
Storage and processing
- Store and use Thermofloor in a dry place.
Basement
- Create a dry, level and technically flawless substrate. If necessary, install a moisture barrier in accordance with DIN 18195 under the insulation surface.
- For ceilings with wooden beams: use anti-creep paper.
Cutting
- Cut using Gutex jigsaw blades or a hand-held circular saw; comply with the legal requirements for handling wood dust.

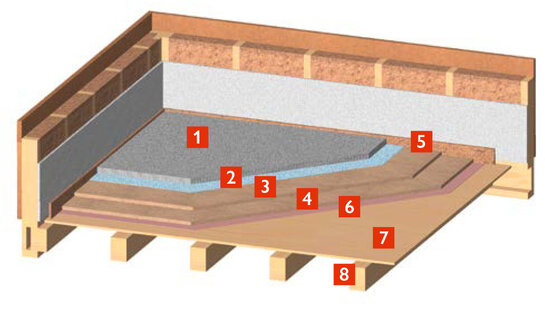

Floor structure and installation
- 1 Wet screed
- 2 Moisture protection film
- 3 Gutex Thermofloor 30 mm
- 4 Gutex Thermofloor 30 mm
- 5 Edging strips
- 6 Run-off protection paper
- 7 Exposed formwork
- 8 Visible beam
Installation diagram
- Adhered in one or two layers; maximum thickness of 60 mm depending on the insulation structure:
Coating onThermofloor | MaximaleThickThermofloor |
|---|---|
Wet screed(cement, anhydriteetc.) | 60 mm (2 x 30 mm) |
Mastic asphalt | 60 mm (2 x 30 mm) |
Chip laying platete≥ 25 mm | 30 mm (1 x 30 mm) |
OSB panel ≥ 22 mm | 30 mm (1 x 30 mm) |
Dry screed element ≥ 25 mm | 20 mm (1 x 20 mm) |
For higher insulation structures up to max. 100 mm.Gutex Thermosafe-wdto use.
- Place the off-cut from one row of laying at the start of the next row.
- Apply a fascia strip at the same height as the entire structure.
Note
- For damp screeds, place a damp-proofing film over the soundproofing panels.
| Bulk density ρ | ~ 160 kg/m³ |
| Vapour diffusion (μ) | 5 |
| Nominal value of thermal conductivity λD | 0,040 W/mK |
| Design value of thermal conductivity λB | 0,042 W/mK |
| Airflow resistance | ≥ 100 kPa s/m² |
| Specific heat capacity | 2100 J/kgK |
| Fire behaviour Euroclass according to DIN EN 13501-1 | E |
| Plate labelling | WF-EN13171-T7-SD30 MU5-AFr100 |
| Dynamic stiffness | ≤ 30 MN/m³ |
| Compressibility | 2 mm |
