Universal wood fibre insulation board for roofs, ceilings and façades
Gutex Thermosafe-homogen is the universal insulation board that combines all the advantages of ecological wood fibre: very low thermal conductivity for excellent thermal insulation, excellent heat storage capacity for optimum protection against heat and cold, and it is slightly hydrophobic and therefore insensitive to moisture - for constant insulation performance and dimensional stability in roofs, ceilings and facades.
- Insulation with high heat storage capacity and low thermal conductivity for protection against heat in summer, cold in winter and soundproofing
- Slightly hydrophobic for extra moisture resistance
- Time-saving installation thanks to precise dimensions
Nominal value of thermal conductivity λD
0,037 W/mK
Design value of thermal conductivity λB
0,039 W/mK
Product details
At home in new or existing buildings that are significantly energy-efficient
Thermosafe-homogen is the universal insulation board for the most diverse insulation solutions and combinations: for roofs, upper storey ceilings, walls and interior fittings. For multi-layered structures, the diffusion-open, moisture-regulating Thermosafe-homogen can be combined with the wood fibre insulation boards of the Thermowall ecological building envelope. The natureplus-certified insulation board is harmless from the point of view of construction biology, i.e. it contains no harmful substances. It is made from wood from PEFC-certified forests and can generally be recycled by type at the end of its service life. It is ideal for the sustainable thermal insulation of new and existing buildings and for creating energy-efficient building envelopes.
- Diffusibility and moisture regulation for sustainable energy efficiency and a comfortable indoor climate
- Universal use in roofs, walls, upper storey ceilings and interior fittings, also in combination with other wood fibre insulation boards
- Sustainable thermal insulation: recyclable and safe for construction
Ingredients
- Untreated fir and spruce wood
- 4.0% PUR resin
- 0.5% paraffin
Thermosafe-homogen: one plate, universal use
Storage
- Store and use Thermosafe-homogen in a dry place.
Cutting
- With hand-held circular saws or special saws for insulating materials such as the Festool pruning saw; the statutory regulations on handling wood dust must be observed.
Installation

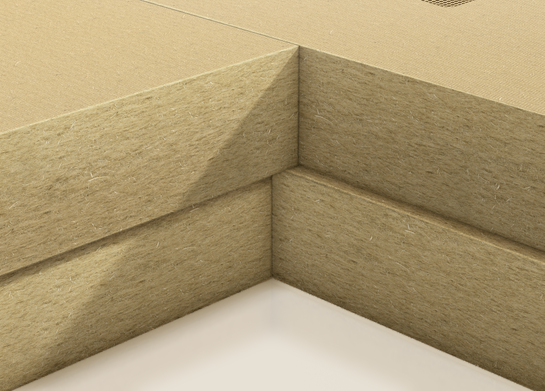

- In the case of several layers, lay the panels with the joints staggered, avoiding cross joints.
- Only to be laid over a complete surface, e.g. wooden formwork, solid wood walls, upper storey ceilings or masonry insulation.
- To be used exclusively in combination with Multiplex-top or Ultratherm (for roof insulation) or Multitherm (for ventilated facades).
- At floor level, use only under a damp screed up to 60 mm thick (floor insulation); for alternative structures, see Thermosafe-wd and Thermofloor.
Service
- Free, no-obligation building physics calculations from ourApplication techniqueavailable.
Detailed training
| Bulk density ρ | ~ 110 kg/m³ |
| Vapour diffusion (μ) | 4 |
| Nominal value of thermal conductivity λD | 0,037 W/mK |
| Design value of thermal conductivity λB | 0,039 W/mK |
| Compressive stress strength | ≥ 50 kPa |
| Short-term water absorption | ≤ 2 kg/m² |
| Airflow resistance | ≥ 35 kPa s/m² |
| Specific heat capacity | 2100 J/kgK |
| Fire behaviour Euroclass according to DIN EN 13501-1 | E |
| Plate labelling | WF-EN13171:2012+A1:2015-T4-WS2,0-CS(10/Y)50-TR5-MU4-AFr35 |
| Tensile strength perpendicular to the board surface | ≥ 5 kPa |
