Impact sound insulation panel with installation strip for screwed wooden floors
Gutex Thermosafe-nf is the ideal underlay for floors or parquet: this soundproofing panel optimises walking comfort and significantly reduces impact noise. Thanks to the wood fibre's excellent heat-storing capacity, it also provides pleasant thermal insulation, increasing living comfort in the room and significantly reducing unpleasant cold feet. The Thermosafe-nf soundproofing panels are securely joined together by the installation skirting board, which is used to screw the wooden floor securely in place.
- Significant improvement in impact noise and high walking comfort
- Thermal insulation to keep your feet cool and your home comfortable
- Time-saving installation thanks to the profile system and practical format
Nominal value of thermal conductivity λD
0,039 W/mK
Design value of thermal conductivity λB
0,041 W/mK
Product details
Living and walking with lasting comfort
The spruce skirting board is inserted precisely between the soundproofing panels using a tongue-and-groove joint. It ensures a stable connection between the Thermosafe-nf panels and allows planks or floorboards to be screwed on securely, creating a comfortable, stable wooden floor. The decoupling of the skirting boards also reduces the transmission of impact noise. Dry construction with Thermosafe-nf also allows work to progress quickly, as no drying time is required. Like all Gutex ecological wood-fibre insulation materials, this insulation board is natureplus-certified, so it is proven to be constructionally safe - free from harmful components. What's more, the soundproofing panel is recyclable.

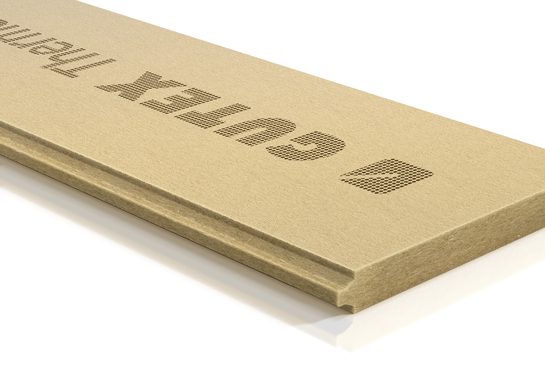

- The precise tongue-and-groove joint of the installation skirting connects the insulation panels securely, allowing boards and parquet planks to be screwed on securely
- Decoupled installation battens reduce impact noise transmission
- Rapid progress on dry construction work without drying time
Ingredients
- Untreated fir and spruce wood
- 4.0% PUR resin
- 0.5% paraffin

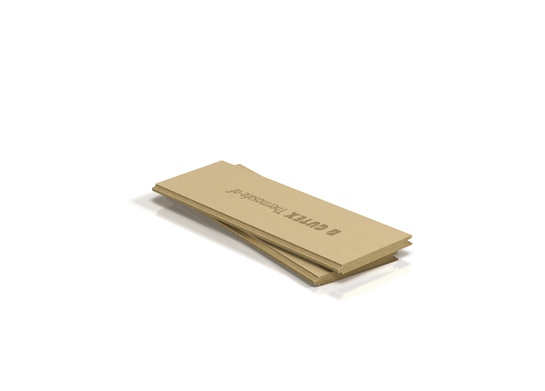

Thermosafe-nf sound insulation panel: a handy format
Storage and processing
- Store and use Thermosafe-nf in a dry place.
Cutting
- Cutting using a Gutex jigsaw blade or a hand-held circular saw with dust extraction; the legal requirements for handling wood dust must be observed.
Basement
- The substrate must be dry, flat and technically flawless.
- If necessary, install a moisture barrier in accordance with DIN 18195.
Installation
- Lay the mouldings with the marked side up and the panels with the marked side down.
- Apply the edge strip up to the top edge of the Thermosafe-nf.

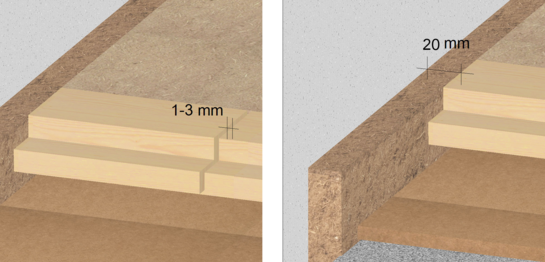

- Lay the battens at least 20 mm from the wall; leave a gap of 1 to 3 mm between the batten joints.
Installation
- Lay the mouldings with the marked side up and the panels with the marked side down.
- Apply the edge strip up to the top edge of the Thermosafe-nf.
- Lay the battens at least 20 mm from the wall; leave a gap of 1 to 3 mm between the batten joints.
- Stagger the joints of the installation battens by at least 1 m from one batten to the next.
- The start and end plates must be at least 12 cm wide.
- Middle of stick/centre of stick = 41.4 cm.
- Lay Thermosafe-nf over the entire surface, without any interruptions from installations.
- Lay the tiles with a firm bond.

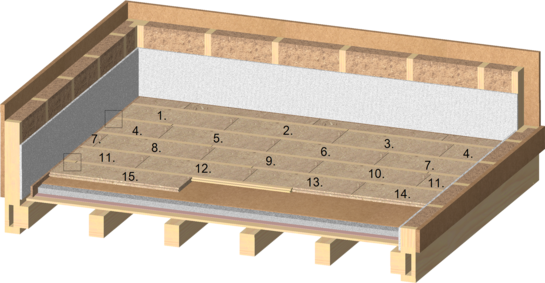

- Place the off-cut from one row of laying at the start of the next row.
- Recommendation: for moisture-sensitive floors made of beech, birch or black locust, lay two strips of the system staggered and glue them together with white glue.
Structure and fixing
- For higher insulation thicknesses under Thermosafe-nf, use Thermosafe-wd wood fibre insulation board up to a maximum of 100 mm.
- The minimum thickness of the floorboard or strip is 19 mm.
- There should be at least two fixing points per floorboard or parquet.
| Bulk density ρ | ~ 130 kg/m³ |
| Vapour diffusion (μ) | 3 |
| Nominal value of thermal conductivity λD | 0,039 W/mK |
| Design value of thermal conductivity λB | 0,041 W/mK |
| Compressive stress strength | ≤ 50 MN/m³ |
| Airflow resistance | ≥ 100 kPa s/m² |
| Specific heat capacity | 2100 J/kgK |
| Fire behaviour Euroclass according to DIN EN 13501-1 | E |
| Plate labelling | WF-EN13171-T7-CP2-SD50- CS(10/Y)100-MU3-AFr55 |
| Compressibility | 2 mm |
