Compression-resistant insulation panel for installation levels
Gutex Thermoinstal is the environmentally-friendly insulation board for installation levels. Compared with batten constructions, it reduces the risk of thermal bridges and at the same time improves sound insulation - ideal for installation levels where noise-generating heating, water or ventilation pipes are laid in addition to cables. What's more, Thermoinstal is pressure-resistant and dimensionally accurate, so it can be installed quickly - especially when prefabricating wall elements.
- Effectively reduces thermal bridges and improves the U-value of wall construction
- Time-saving thanks to direct installation without lath construction
- Provides good acoustic insulation thanks to its high gross density
Nominal value of thermal conductivity λD
0,040 W/mK
Design value of thermal conductivity λB
0,042 W/mK
Product details
Why is Gutex Thermoinstal the sustainable choice for installations?
Thermoinstal is a highly compression-resistant insulation specially designed for use in timber constructions. The durable installation insulation is laid over the entire surface and without gaps on the outer or inner wall of the dry construction. The installation channels are then precisely milled into the diffusion-open wood fibre insulation board and finally covered with gypsum plasterboard or fibre cement board. Thermoinstal is a construction-safe insulation, as proven by natureplus certification, and is also a recyclable installation insulation made in Germany.
- Durable insulation with high compressive strength for timber-frame constructions, wood panel constructions and solid wood walls
- Harmless to construction (natureplus certified)
- Recyclable, made in Germany
Ingredients
- Untreated fir and spruce wood
- 4.0% PUR resin
Thermoinstal for installation levels: pressure-resistant, precise dimensions, quick installation
Storage and processing
- Store and use Thermoinstal in a dry place.
Cutting
- Cutting is carried out using the Gutex jigsaw blade, a hand-held circular saw or special saws for insulating materials (e.g. Festool heavy-duty saws). The statutory regulations on handling wood dust must be observed.
Basement
- The substrate must be dry, flat and technically flawless, preferably a load-bearing wooden panel at least 15 mm thick. Beware of building damp!
Important note
- Avoid cross joints.
Installation
- Lay Thermoinstall on a full surface with no gaps and fix it with staples, screws or nails.
- Milling the installation channels with woodworking machines.
- Apply and fix the inner facing (minimum thickness 12.5 mm) over the entire surface and without any gaps, for example using plasterboard screws (75 mm) every 150 mm, with a grid of 62.5 cm.

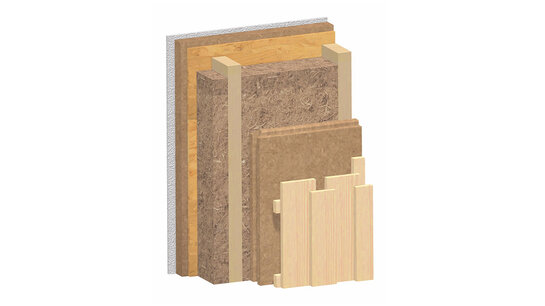

Structure of timber-framed wall with installation level
- Gypsum plasterboard min. 12.5 mm
- Thermoinstal 50 mm
- Wood-based panel (airtight) ≥ 15 mm
- Thermoflexbetween wooden studs
- Multitherm/Top multiplex/Ultratherm
- Counter-battens
- Lathing
- Vertical wooden formwork

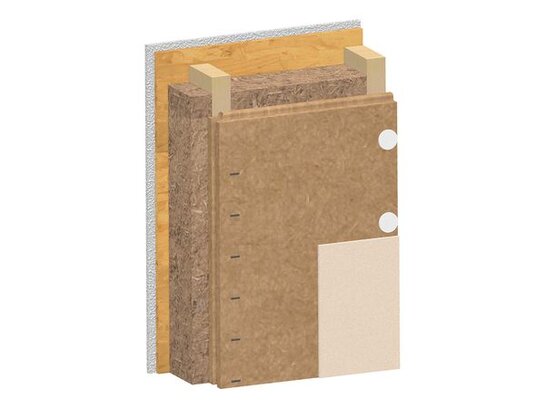

- Gypsum plasterboard min. 12.5 mm
- Thermoinstal 50 mm
- Wood-based panel (airtight) ≥ 15 mm
- Thermoflexbetween wooden studs
- Thermowall
- Gutex rendering system
| Bulk density ρ | ~ 150 kg/m³ |
| Vapour diffusion (μ) | 3 |
| Nominal value of thermal conductivity λD | 0,040 W/mK |
| Design value of thermal conductivity λB | 0,042 W/mK |
| Compressive stress strength | ≥ 100 kPa |
| Airflow resistance | ≥ 100 kPa s/m² |
| Specific heat capacity | 2100 J/kgK |
| Fire behaviour Euroclass according to DIN EN 13501-1 | E |
| Plate labelling | WF-EN13171-T4-CS(10/Y)100-TR10-MU3-AF100 |
| Tensile strength perpendicular to the board surface | ≥ 10 kPa |
