Thanks to our innovative insulation systems, the vision of your home becomes a pleasurable project, from order to delivery. For example, insulating a facade or renovating a roof requires more than fitting insulation panels or clamping mats between the rafters. It's about the perfect interplay between numerous individual components, well thought-out constructions and compliance with regulations, standards and tried-and-tested rules of technology. The aim: a high-quality, long-lasting result that meets your requirements in terms of energy efficiency, living comfort and sustainability. Our environmentally-friendly system solutions achieve precisely this in a particularly effective way: every detail is carefully planned, every component is perfectly matched to each other to deliver maximum performance in interaction - from the absence of thermal bridges to ease of installation.
Environmentally-friendly thermal insulation composite system for sustainable, energy-efficient facades

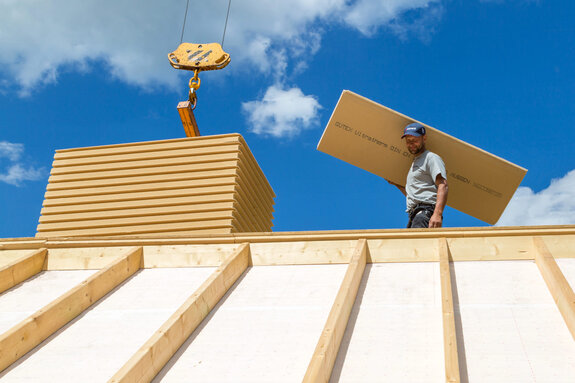

Ecological roof renovation system with protection against rain and hail

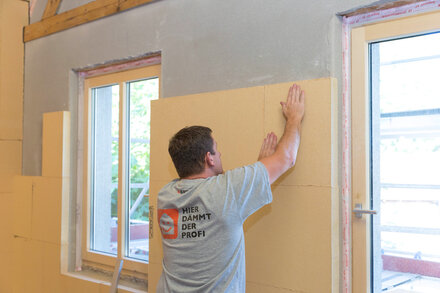

Interior insulation system for high levels of thermal protection and living comfort

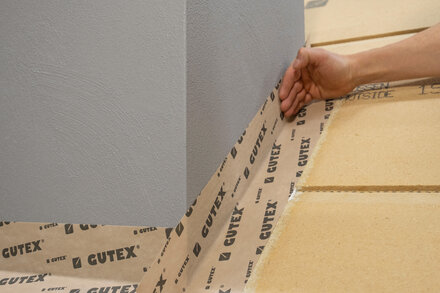

Raintight bonding of joints on roofs and ventilated wall surfaces

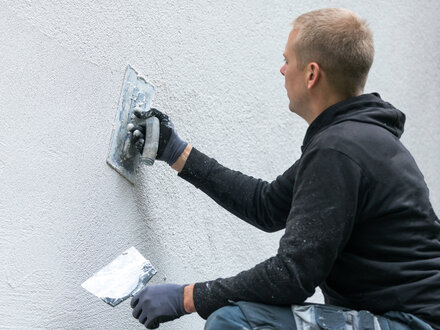

Approved rendering system for Thermowall ITE

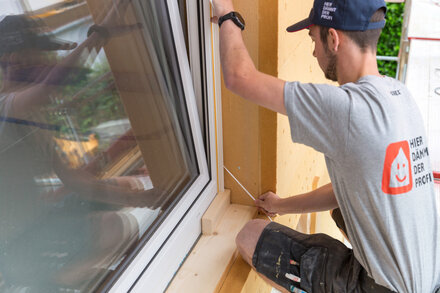

Window and door connection system tested for the lower connection area

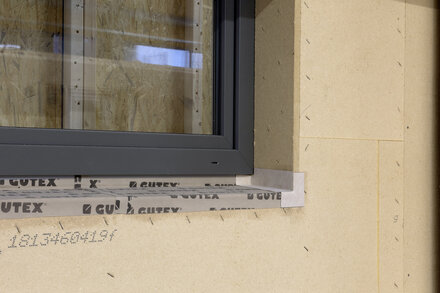

Tested window and door connection system

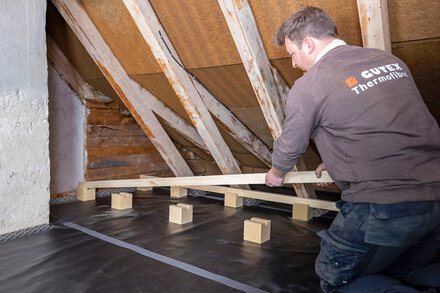

Ecological insulation system for the upper floor ceiling
Whether you're renovating a roof from the outside, insulating the ceiling of an upper storey, externally insulating the walls of a new build or an existing building, or creating permanently watertight window and door connections on the facade - with Gutex, you can always do it right.
Whether it's a roof, a façade or an extension, wood-fibre insulation systems from Gutex promote a comfortable and healthy indoor climate - and make it easier for your craftsman, planner or architect to realise your high-quality, value-for-money building or renovation project. Because with our systems, you're relying on tried-and-tested solutions that we've developed in close collaboration with planners, architects and specialist craftsmen, as well as with guilds, associations and universities. For example, we've had our window and door connection systems testedImplioour commitment to sustainability does not end with the purchase of regional timber from sustainable forestry or a reduction in CO2-The carbon-neutral production at the Eschbach site doesn't stop there. Gutex stands for functional, safe and sustainable system solutions - because that's what sustainability is all about: insulated roofs, facades, storey ceilings or the insides of external walls that perform valuable services for decades to come: for the benefit of residents and the planet. And to ensure that your dream of a cosy, comfortable home comes true, we personally advise everyone involved in the project if necessary.
Under-roof panelsGutex UltrathermandGutex Multiplex-topmeet the requirements of temporary roofing from a roof pitch of 15° up to an RDN of less than 8° and up to three higher requirements without additional gluing or film covering. The panels are assigned to technical class UDP-A in accordance with ZVDH.
Under-roof panelsGutex UltrathermandGutex Multiplex-topcan be exposed to the elements for up to three months.
You will find the ingredients on the variousproduct pagesunder "Description & Benefits" and in the technical data sheets available there under "Technical documents & Brochures".
When insulating above the rafters with our sub-roofing panels, the following distances between the rafters must be observed:
| Product | Panel thickness [mm] | Max. length Rafter centre distance [cm] |
|---|---|---|
| Gutex Multiplex-top | 22 | 85 |
| 35 | 100 | |
| Gutex Ultratherm | 50/60 | 110 |
| 80/100/120/140/160 | 125 | |
| Gutex Multitherm | ≥ 60 | 90 |

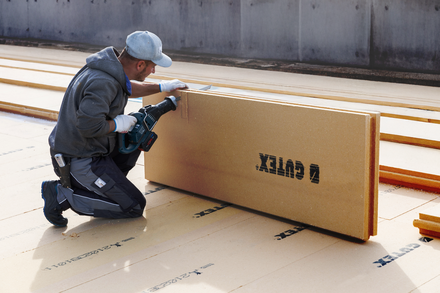

You can cut thinner board thicknesses or small quantities of the flexible wood fibre insulation blanketGutex Thermoflexfor larger quantities, we recommend an electric insulation saw with a corrugated blade, such as the cordless insulation saw from Festool or the Alligator from Bosch.
Construction examples for insulating the upper storey ceiling can be found inthe online catalogue of detailed drawingsas well as in the detailed drawings catalogue.

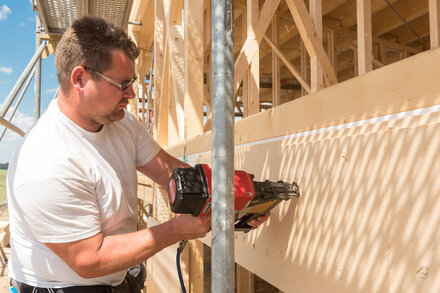

In timber-frame construction, fit the panel Gutex Thermowall/-gf/NF/Durio directly onto the wooden studs or onto any existing facing in the wooden studs. On flat wooden substrates such as solid wood walls, fit the plaster backer board directly. Use wood screws to fix the plaster backer boardGutex Thermowallor stainless steel wide-back staples. On mineral substrates, Gutex plaster support panels must always be glued and doweled, for example using Gutex gluing and plastering compound and thermal screw dowelsGutex WDVSfurther information can be found in the brochure "Gutex Thermowall WDVS - how to install".
In the case of a closed façade, you don't need an additional façade strip on theMultitherm by Gutexin the case of open-joint formwork, we recommend using a waterproof, UV-resistant façade sheet.
You can use wood fibre insulation boardGutex Multithermas an external cladding on framing, solid wood elements or masonry. The insulation panel is immediately fixed to it using the ventilation batten. Use your fastener manufacturer's sizing service to size the fasteners to suit the object.
ITE approvals Z-33.47-660 (PDF) and Z-33.43-942 (PDF)Thermowallthese approvals allow you to choose a coating from 14 manufacturers, with full details of brands, components and uses.
Our insulation systems are only as good as the components they contain, which is why Gutex not only offers high-quality wood fibre insulation materials, but also perfectly matched accessories plus the right tools - for easy installation, maximum efficiency and convincing results. Discover our range and maximise the success of your project.
